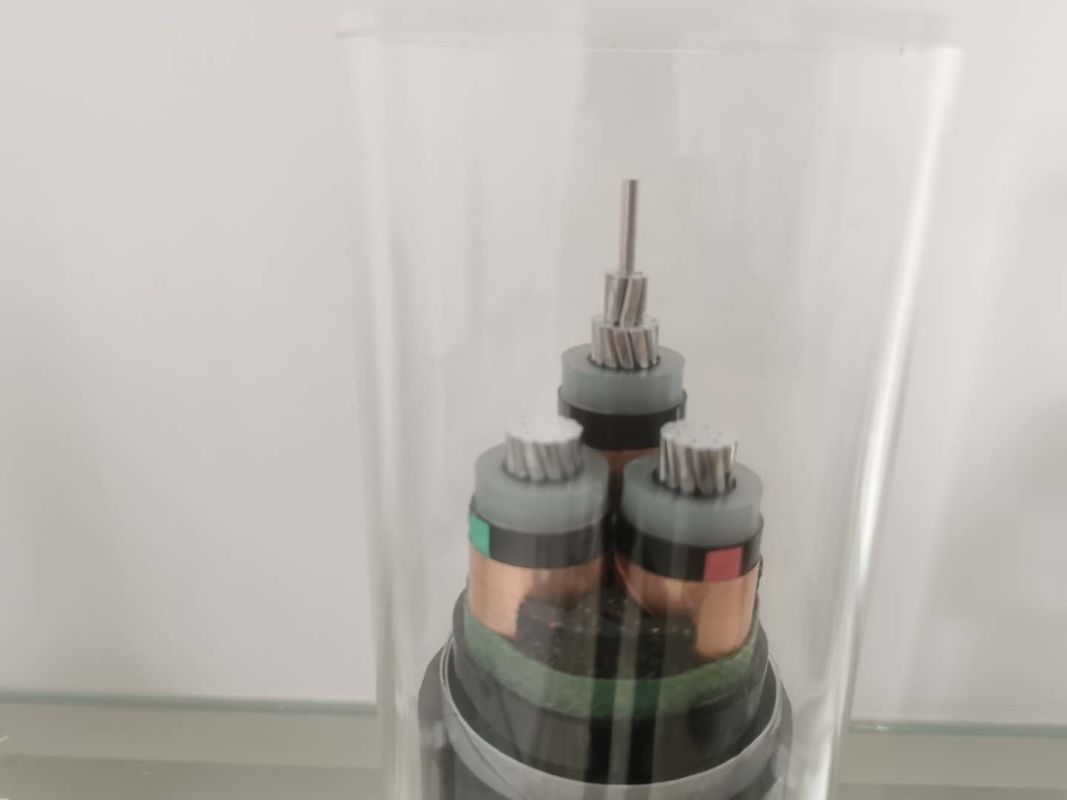

Kreuz verbundenes Drahtseil 3x10mm2 Glanding des Polyäthylen-0.6/1KV
*Main Kabeleigenschaften
1. Uo/U von 0.6/1KV
2. XLPE-Kabel sind SAA zugelassener Leiter 3.: normale getemperte kupferne Isolierung 4. und Hülle: XLPE X-90 normale Betriebstemperatur PVCs 5V-90 5.: Zahl 90°C 6. von Kernen: einkernig/2 Kerne + Kerne der Erde core/3 + earth/4 entkernt + Erde
*Application
Verbundener Polyäthylen-Querdraht in die Straßen mit dichten Bäumen nah an den Gebäuden, Standort des städtischen Baus installiert sein und führt möglicherweise zu Transformator. Er ist besonders für eine alte Stadt, die dicht Gebäude, dicht Bevölkerung und schmale Straßen hat.
Nennspannung für XLPE-Stromkabel | Nr., x Nennquerschnitt von Leiter-Nr. x mm2 | |||||||
1 Kern | Kern 2 | Kern 3 | Kern 3+1 | 4core | Kern 3+2 | Kern 4+1 | Kern 5 | |
0.6/1 KV | 1x4 mm2 | 2x4 mm2 | 3x4 mm2 | 3x4 mm2 + 1x2.5mm2 | 4x4 mm2 | 3x4 mm2 + 2x2.5mm2 | 4x4 mm2 + 1x2.5mm2 | 5x2.5 mm2 |
1x6 mm2 | 2x6 mm2 | 3x6 mm2 | 3x6 mm2 + 1x4 mm2 | 4x6 mm2 | 3x6 mm2 + 2x4 mm2 | 4x6 mm2 + 1x4 mm2 | 5x4 mm2 | |
1x10 mm2 | 2x10 mm2 | 3x10 mm2 | 3x10 mm2 + 1x6 mm2 | 4x10 mm2 | 3x10 mm2 + 2x6 mm2 | 4x10 mm2 + 1x6 mm2 | 5x6 mm2 | |
1x16 mm2 | 2x16 mm2 | 3x16mm2 | 3x16 mm2 + 1x10 mm2 | 4x16 mm2 | 3x16 mm2 + 2x10 mm2 | 4x16 mm2 + 1x10 mm2 | 5x10 mm2 | |
1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3x25 mm2 + 1x16mm2 | 4x25 mm2 | 3x25 mm2 + 2x16mm2 | 4x25 mm2 + 1x16mm2 | 5x16 mm2 | |
1x35 mm2 | 2x35 mm2 | 3x 35 mm2 | 3x35 mm2 + 1x16mm2 | 4x35 mm2 | 3x35 mm2 + 2x16mm2 | 4x35 mm2 + 1x16mm2 | 5x25 mm2 | |
1x50 mm2 | 2x50 mm2 | 3x 50 mm2 | 3x50 mm2 + 1x25mm2 | 4x50 mm2 | 3x50 mm2 + 2x25mm2 | 4x50 mm2 + 1x25mm2 | 5x35 mm2 | |
1x70 mm2 | 2x70 mm2 | 3x 70 mm2 | 3x70 mm2 + 1x35mm2 | 4x70 mm2 | 3x70 mm2 + 2x35mm2 | 4x70 mm2 + 1x35mm2 | 5x50 mm2 | |
1x95 mm2 | 2x95 mm2 | 3x 95 mm2 | 3x95 mm2 + 1x50mm2 | 4x95 mm2 | 3x95 mm2 + 2x50mm2 | 4x95 mm2 + 1x50mm2 | 5x70 mm2 | |
1x120 mm2 | 2x120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4x120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5x95 mm2 | |
1x150 mm2 | 2x150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4x150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
1x185 mm2 | 2x185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4x185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
1x240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4x240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
1x300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4x300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
1x400 mm2 | ||||||||
1x500 mm2 |
Vorteile von XLPE-Kabel:
XLPE-Kabel hat eine höhere langfristige Betriebstemperatur und einen größeren Nennstrom, und unter der gleichen Umwelt, die Größe (normaler Querschnitt) von XLPE-Kabel ist möglicherweise 1 oder 2 kleiner als PVC-Kabel. Diese verbessern nicht nur die Qualität und die Leistung des Produktes, aber, die Produktionskosten des Kabels auch zu verringern. Gepanzerte Kabel des Stahlbands für gepanzerte Kabel können die mechanischen Eigenschaften der Kabel erhöhen, und die Kabel können externem mechanischem Druck widerstehen.
Stahlgurtrüstung/Stahlfolienrüstung, Stahldrahtrüstung/Stahldraht armor/SWA. Gepanzertes Kabelmodell des Stahlbands: VV22, VV23, VLV22, VLV23, YJ V22, YJV23, YJLV22, YJLV23, ZR-VV22, NH-VV2 2, WDZ-YJV22, WDZ-YJV23, WDZ-YJY22
