XLPE Insulated Cable

MOQ:	500 METER
Preis:	US$ 0.5~56 / meter
Standardverpackung:	Hölzerne Trommeln
Lieferfrist:	eine Woche oder 10 Tage
Zahlungsmethode:	L / C, T / T
Lieferkapazität:	100 Kilometer pro Woche

Einzelheiten Informationen

Produktbeschreibung

Einzelheiten

Herkunftsort

China

Markenname

QINGDAO YICABLE CABLE

Zertifizierung

ISO,CE,IEC,KEMA

Modelltyp:

Niederspannungs-Kupfer-Stromkabel

Leiter:

Kupfer

Größen:

6 | 1000 SQMM

Kerne:

Single

Isolierung:

XLPE

Garantie:

zwei Jahre

Hülle:

PVC

Hervorheben:

xlpe electrical cable

cross linked polyethylene cable

Produktbeschreibung

Copper conductor three core XLPE insulated low smoke halogen-free flame retardant polyolefin sheathed power cable

Applications
This product is applicable to shafts, water and soil, able to bear the larger positive pressure, with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.

Application Standards

International: IEC 60502, IEC 60228, IEC60332

China: GB/T 12706 1-2008

Other standards such as BS, DIN and ICEA upon request

Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

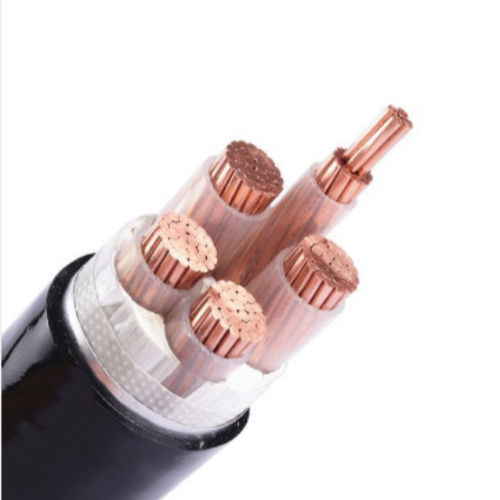

Constructions

Code	:	WDZN-YJV23
Standarts	:	TS IEC 60502, IEC 502, VDE 0271, BS 6346
Construction	:	1- Solid, Stranded or Flexible Copper Conductor
		2- XLPE insulation (cross-linked PE) or PVC
		3- PVC inner Sheath or PE, LSOH
		4- Steel Tape Armored
		5- PVC outer sheath, or PE, LSOH
Application	:	Preferably for installation indoors, in cable ducts and in industrial plants or
		switching stations, underground installation with additional protection where
		mechanical damage is unexpected.
Technical Data	:	Max. operating temperature 90 ºC
		Short circuit temperature 250 ºC

Code Designation

YJ : XLPE insulation

V : PVC insulation or sheath

22 : Steel Tape Armored

Technical data

Rated voltage: 0.6/1kv Voltage
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

XLPE Insulation: Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D

Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity

Tags:
