50mm2 AL PVC Xlpe Insulated Cable For Power Distribution / Transmission Line

Produits

gepanzertes elektrisches Kabel

Abgeschirmtes Instrument-Kabel

niedriger Rauch null Halogenkabel

Antenne zusammengerolltes Kabel

Vorfabriziertes Niederlassungs-Kabel

Kupfer verkleidet Aluminium Draht

Brennschneiderkabel

Kontakt mit uns

Mr. William

sales1@holdonecable.com

86-- 18724796885

+86 19026815676

Kontaktieren Sie uns jetzt

50mm2 AL PVC Xlpe Insulated Cable For Power Distribution / Transmission Line

MOQ:	200
Preis:	USD 1-100 Per Meter
Standardverpackung:	Eisen-hölzerne Trommel oder hölzerne Trommel
Lieferfrist:	5-10 Tage
Zahlungsmethode:	L/C, T/T, Western Union, MoneyGram
Lieferkapazität:	100KM PRO MONAT

Einzelheiten Informationen

Produktbeschreibung

Einzelheiten

Herkunftsort

China

Markenname

QINGDAO YICABLE CABLE

Zertifizierung

IEC/CE/KEMA

Nennspannung:

0.6/1kV

Dirigent Typ:

Angeschwemmter Leiter (Klasse 2)

Kern-Kennzeichen:

Zahl oder Farbstreifen

Hüllen-Kennzeichen:

Tintendrucken oder Prägung

Trommel-Länge:

500m oder gemäß des Antrags

äußere Hüllenfarbe:

Schwarzes oder besonders angefertigt

Hervorheben:

xlpe electrical cable

cross linked polyethylene cable

Produktbeschreibung

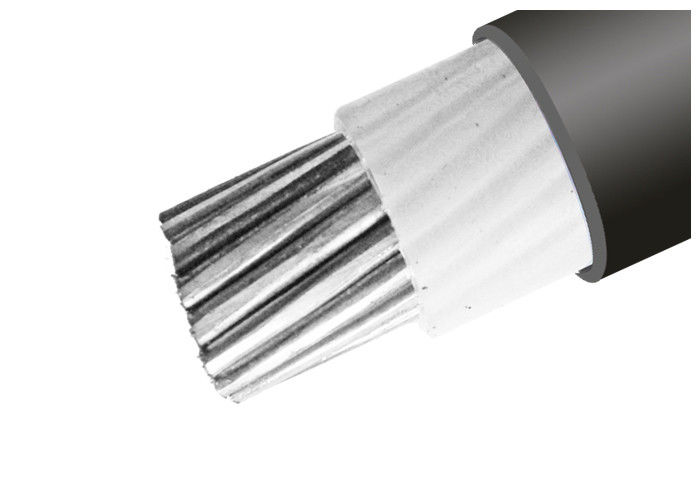

50mm2 AL PVC Xlpe Insulated Cable For Power Distribution / Transmission Line

Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.

Construction:

Conductor	Aluminum Conductor as per IEC 60228,Class 2
Conductor	Circular or Shaped conductor
Insulation	XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional	Copper tape or copper wires braiding optional
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical data: Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request

Installation

1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.
3. After installation, the cable should with stand voltage test for 15min. 3.5kv D.C.

Technical parameter:

Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
Nom. Cross-section of conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	mm	mm	mm	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1×50	1.0	1.5	13	245	0.641	3.5	170	180
3×50	1.0	2.0	27	730	0.641	3.5	130	140
4×50	1.0	2.0	28	907	0.641	3.5	130	140
3×50+1×25	1.0	2.0	28	816	0.641	3.5	130	140

50mm2 AL PVC Xlpe Insulated Cable For Power Distribution / Transmission Line 0

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

50mm2 AL PVC Xlpe Insulated Cable For Power Distribution / Transmission Line 1
