1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
  • 1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
  • 1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
  • 1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
  • 1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC
  • 1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC

1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC

Herkunftsort China
Markenname QINGDAO YICABLE CABLE
Zertifizierung CE/KEMA/IEC
Produktdetails
Leiter:
Kupfer
Isolierung:
XLPE
Überstreifen:
LSOH BendingTape
Hülle:
LSOH
Nennspannung:
LV und Millivolt
Kerne nein.:
1-5 Kerne
Hervorheben:

fire rated cable

,

fire resistant wire

Payment & Shipping Terms
Min Bestellmenge
500m
Preis
0.5-50 USD
Verpackung Informationen
Hölzerne Eisen-Trommel
Lieferzeit
15 Arbeitstage
Zahlungsbedingungen
L/C, D/A, D/P, T/T
Versorgungsmaterial-Fähigkeit
5000 Kilometer pro Monat
Produktbeschreibung

1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC

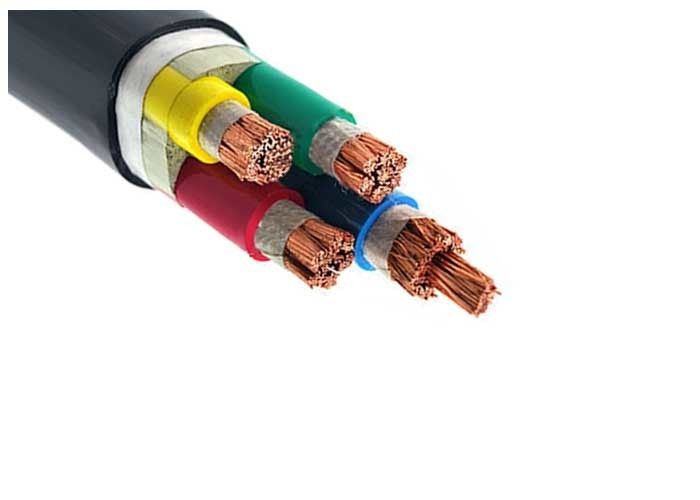

Construction

1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228

(11 MicaTape

③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C

(1111 Filler

(5: Wrapping Tape: LSOH BendingTape

⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1









CodeDesignation

YJ:XLPEinsulation Y: LSOH sheath







Applications

Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.







Standards

lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3 for FR cable only)

Other standards such as BS, DIN and lCEAupon request







Technical data

Rated voltage: 0.6/ 1㎸

Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than 5 s(250°C) conditions Min.Ambient Temp.-15°C,lnstallationTemp.0°C

1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC 0





1 Cores - 5 Cores Copper Fire Resistant Cable IEC Standard LV MV FRC 1
