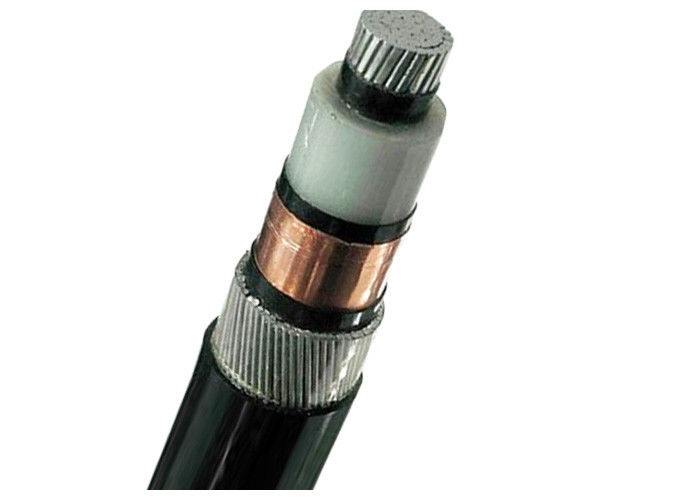

AL Conductor Single Core XLPE insulated power cable (XLPE/PVC Cable)
Rated Voltage(U0/U):
0.6/1kV, 1.9/3.3kV, 3.6/6kV, 3.8/6.6kV, 6/10kV,6.35/11kV, 8.7/15kV, 12/20kV, 12.7/22kV, 18/30kV, 19/33kV, 21/35kV, 26/35kV
Section Area:
Min.: 2.5mm2, Max.: 500mm2
Standard:
BS 7870-3, BS7870-4, BS 7870 -6, BS7870-7, BS 7870-8
IEC60502, IEC60332, IEC60754
Product Description:
- XLPE insulated PVC sheathed power cable (XLPE/PVC Cable)
- XLPE insulated steel tape armored PVC sheathed power cable (XLPE/STA/PVC Cable)
- XLPE insulated steel wire armored PVC sheathed power cable (XLPE/SWA/PVC Cable)
- Flame retardant XLPE insulated PVC sheathed power cable (FR/XLPE/PVC Cable)
- Flame retardant XLPE insulated steel tape armored PVC sheathed power cable (FR/XLPE/STA/PVC Cable)
- Flame retardant XLPE insulated steel wire armored PVC sheathed power cable (FR/XLPE/SWA/PVC Cable)
FR – Flame Retardant
Application:
This type of product is used for power transmission and distribution line with voltage rated at 35kV and below. In comparison with PVC Insulated Power Cable, it boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
For laying indoor, tunnel, underground and canal, for laying in shaft, water under ground and large difference of level.
| MV(11kv 15kv 33kv) Power Cable |
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV |
No.of Core |
Conductor cross-section area(mm2) |
| xlpe insulation |
1 core 3 core |
10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm |
| Cu core |
| YJV, N2XSY;PVC sheathed power cable |
| YJV22;steel tape armoured,PVC sheathed power cable |
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable |
| Al Core |
| YJLV, NA2XSY; PVC sheathed power cable |
| YJLV22;steel tape armoured,PVC sheathed power cable |
| YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable |
Standard
International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request
Technical data:
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core
| Test voltage |
6 / 10 kV |
[kV] |
21 / 5 min. |
| |
12 / 20 kV |
[kV] |
42 / 5 min. |
| |
18 / 30 kV |
[kV] |
63 / 5 min. |
| Temperature range |
in motion |
|
-5°C till +70°C |
| |
fixed |
|
-20°C till +70°C |
| Operating temperature |
short circuit |
°C |
250 |
| Short circuit time |
max. |
[sec] |
5 |
| Bending radius |
min. |
x diameter |
15 |
| Flammability |
standard |
|
EN 60332-1-2 |
Certificate
ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request
This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
FAQ
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C , just choose what you like
3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
