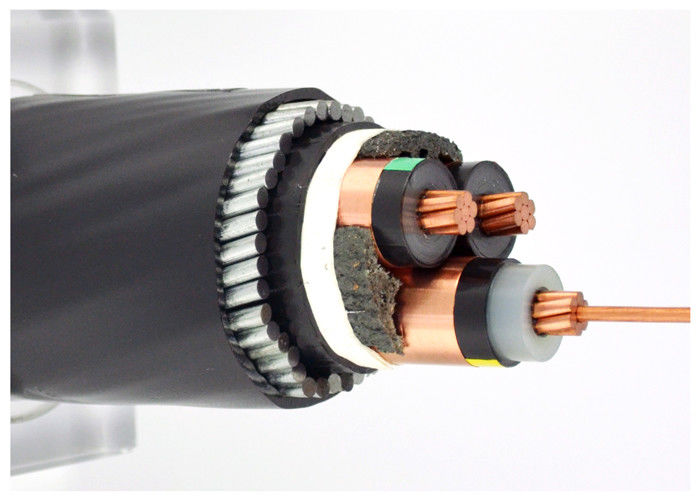

Medium Voltage Armored Electrical Cable IEC60502-2 IEC60228 Standard

Construction

CU/XLPE/PVC/STA/PVC Armoured Electrical Cable

- Round bare aluminum core stranded according to IEC 60228
- Inner semi-conductive layer
- Core insulation XLPE
- Color code according to HD 308 S2
- Outer semi-conductive layer
- Semi-conductive tape
- Copper tape screen
- Filler
- PVC inner sheath
- Galvanized Steel Wire armour (SWA)
- PVC outer sheath (red or black)

Code name:

YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant

Application

Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request

Technical data:

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D for single core
12 x cable O.D for multi core

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 60332-1-2

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Sheath Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
3 × 25	7/2.14	3.4	1.3	2.5	2.5	49.0	4579	0.727	21	120	125
3 × 35	7/2.52	3.4	1.3	2.5	2.6	52.0	5097	0.524	21	140	155
3 × 50	10/2.52	3.4	1.4	2.5	2.7	54.0	5802	0.387	21	165	180
3 × 70	14/2.52	3.4	1.5	2.5	2.8	58.0	6788	0.268	21	210	220
3 × 95	19/2.52	3.4	1.5	2.5	2.9	62.0	7812	0.193	21	255	265
3 × 120	24/2.52	3.4	1.6	2.5	3.1	65.0	8929	0.153	21	290	300
3 × 150	30/2.52	3.4	1.7	2.5	3.2	68.0	10125	0.124	21	330	340
3 × 185	37/2.52	3.4	1.7	3.15	3.3	72.0	12403	0.0991	21	375	380
3 × 240	48/2.52	3.4	1.8	3.15	3.5	78.0	14646	0.0754	21	435	435
3 × 300	61/2.52	3.4	1.9	3.15	3.7	83.0	17014	0.0601	21	495	485
