MOQ:	600 Meter
Preis:	US$0.5~121 per Meter
Standardverpackung:	Hölzerne Trommeln
Lieferfrist:	15 Arbeitstage
Zahlungsmethode:	T / T, L / C
Lieferkapazität:	30.000 Kilometer pro Monat

Einzelheiten Informationen

Produktbeschreibung

Einzelheiten

Herkunftsort

China

Markenname

QINGDAO YICABLE CABLE

Zertifizierung

ISO,CE,IEC,TUV,KEMA

Modelltyp:

4 Kern-Stahldraht-gepanzertes Kabel

Nennspannung:

0.6/1kV

Isolierung:

XLPE

Leiter:

Kupfer

Rüstung:

Stahldraht

Größen:

1~ 630mm2

Kerne:

Kern 4

Hüllen-Material:

PVC, PET, LSOH

Normen:

IEC/BS/IST/VDE

Garantie:

2 Jahre

Freie Probe:

verfügbar

Hervorheben:

armored cable wiring

armoured power cable

Produktbeschreibung

4 Cores Steel Wire Armored Low Voltage Cable Copper XLPE PVC SWA Cable Shenghua Cable

Applications: Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism,

heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple

structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Standards: International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Construction:

Conductor	Compact Stranded Copper Conductor, Class 2 as per IEC 60228
Conductor	Circular solid Copper Conductor, Class 1 as per IEC 60228
Insulation	XLPE(Cross-linked polyethylene)
Filler	PP Filler
Wrapping Tape	Non woven
Inner Covering	Extruded PVC
Armour	Steel Wire
Overall Sheath	Termite Resistant PVC

Technical data:

Rated voltage: 0.6/1kV

Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.

Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables

15 x cable O.D for single-core armoured cables

15 x cable O.D for multi-core non-armoured cables

12 x cable O.D for multi-core armoured cables

Specifications:

Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

Insulation Thickness

Inner Covering Thickness

Dia. Of Armor Wire

Sheath Thickness

Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)

Testing Voltage A.C

Current Rating

mm²

pc/mm

(mm)

kg/km

Ω /km

kV/5min

In air (A)

In soil(A)

4 × 4	7/0.85	0.7	1.0	0.9	1.8	18.0	699	4.61	3.5	34	45
4 × 6	7/1.04	0.7	1.0	1.25	1.8	19.0	820	3.08	3.5	43	57
4 × 10	7/1.38	0.7	1.0	1.25	1.8	22.0	1233	1.83	3.5	60	77
4 × 16	7/1.78	0.7	1.0	1.6	1.8	24.5	1550	1.15	3.5	83	105
4 × 25	7/2.14	0.9	1.0	1.6	1.8	29.2	2036	0.727	3.5	105	125
4 × 35	7/2.52	0.9	1.0	2.0	1.9	32.5	2501	0.524	3.5	125	155
4 × 50	10/2.52	1.0	1.0	2.0	2.0	33.0	3064	0.387	3.5	160	185
4 × 70	14/2.52	1.1	1.0	2.0	2.1	37.0	3974	0.268	3.5	200	225
4 × 95	19/2.52	1.1	1.2	2.0	2.3	43.0	5032	0.193	3.5	245	270
4 × 120	24/2.52	1.2	1.2	2.5	2.5	45.0	6327	0.153	3.5	285	310
4 × 150	30/2.52	1.4	1.4	2.5	2.7	51.0	7765	0.124	3.5	325	345
4 × 185	37/2.52	1.6	1.4	2.5	2.8	56.0	9205	0.0991	3.5	375	390
4 × 240	48/2.52	1.7	1.4	2.5	3.0	62.0	11444	0.0754	3.5	440	450
4 × 300	61/2.52	1.8	1.6	2.5	3.2	67.0	13830	0.0601	3.5	505	515
4 × 400	61/2.97	2.0	1.6	3.15	3.5	74.0	19673	0.0470	3.5	570	575

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order.

Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP

self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture.

The required marking shall be printed with a weather-proof material on the outsides of drum

according to customer's requirement.

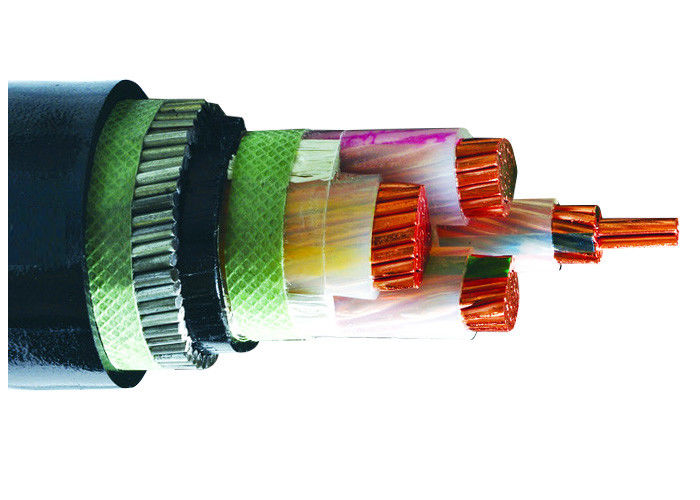

4 Cores Steel Wire Low Voltage Armoured Electrical Cable Copper XLPE PVC SWA Cable 1
