Produktname:

gepanzerte Stromkabel

Isolierung:

XLPE

Rüstung:

Stahlband, Draht

Leiter:

Kupfer

Hülle:

PVC, PET, LSOH

Kerne:

Eine oder drei Kerne

Standard:

IEC, BS, IST, VDE

Garantie:

2 Jahre

Hervorheben:

armored electrical wire

armoured power cable

Produktbeschreibung

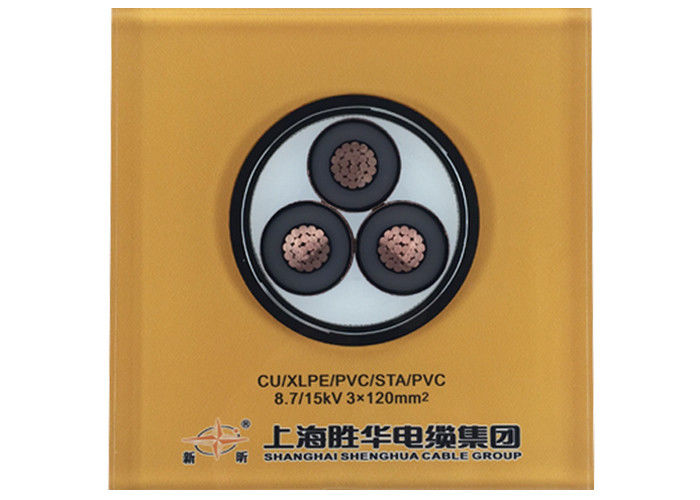

Professional STA Power Armoured Electrical Cable 120mm2 185mm2 240mm2 300mm2

MV(6 to 35kv) Power Cable Details

YJ: XLPE insulation

V: PVC sheath

32: Steel wire armoring—3 cores

22: Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant

Construction

1 ..... stranded bare copper
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 ..... Extruded PVC Inner Covering

10 .... Stainless Steel Tape Armoured
11 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.

Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants.

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

- Power cable according to DIN VDE 0276 part 603, HD 620, IEC 60502, BS 6622
- Temperature range max. to +90 °C
- Temperature during installation from 0 °C to +70 °C
- Short circuit temperature +250 °C (up to 5 seconds)
- Nominal voltage Uo/U 3,6/6 kV, 6/10 kV, 6,35/11 kV (dle BS), 18/30 kV, 19/33 kV (dle BS)
- Operating voltages 3,6/6 kV = max. 7,2 kV 6/10 kV = max. 12 kV 18/30 kV = max. 36 kV
- Test voltage a.c. 3,6/6 kV = 11 kV up to 5 min. 6/10 kV = 21 kV up to 5 min. 18/30 kV = 63 kV up to 5 min.
- Minimum bending radius approx. 15 cable diameter

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 60332-1-2

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

Table of the voltage, cores and cross-section

Item	Category A ,B	3.6/6kV	6/10kV	8.7/15kV	12/20kV	18/30kV	21/35kV
Item	Category A ,B	6/6kV	8.7/10kV	12/15kV	18/20kV	-	26/35kV
Single core	mm2	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
Three core	mm2	25-400	25-400	35-400	50-400	50-400	50-400

The cable with Category A rated voltage is used in the situation requiring not over 1 min. of grounding fault lasting time. For the cable with Category B rated voltage, the grounding fault lasting time normally is not over 1 hour, max. lasting time is not over 8 hours, annual ground fault lasting time altogether should not be over 125 hours, Category C includes all the system expect Category A and B.

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services

♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
