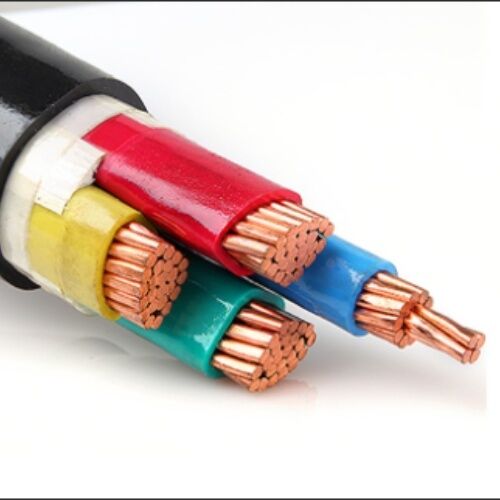

3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable

MOQ: 1000 Meter
Preis: US$0.29 -119/Meter
Standardverpackung: Hölzerne Trommeln
Lieferfrist: 7 Tage
Zahlungsmethode: T / T, L / C
Lieferkapazität: 20.000 Kilometer pro Monat
Einzelheiten Informationen
Produktbeschreibung
Einzelheiten
Herkunftsort
China
Markenname
QINGDAO YICABLE CABLE
Zertifizierung
ISO,CE,IEC,TUV,KEMA
Produktname:
STA-Untertagekabel
Isolierung:
PVC/XLPE
Leiter:
Kupfer
Rüstung:
Stahlband
Größen:
1,0 | sqMM 630
Kerne:
3+1 Kerne
Jacke:
PVC/PET/LSZH
Freie Probe:
Ja
Garantie:
2 Jahre
Normen:
IEC/BS/IST/VDE
Hervorheben:

armored cable wiring

,

armoured power cable

Produktbeschreibung

3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable



Cable details


1.U0/U: 0.6/1kV



2.Standard: IEC60502, BS7870, GB/T12706



3.Max. working temperature: 90 °C , can be 110 °C as requirement



4.Conductor: Class 1/2 annealed bare copper solid or strands



5.Insulation: XLPE



6.Armored: STA



7.Sheath: PVC



8. Cross section area: 1.5~630mm2



9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E



10. Packing:Wooden drum or as requirement



11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB



12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable







Applications



STA Armored Electric Cable YJV22 4+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.



YJ: XLPE insulation

V: PVC insulation

V: PVC sheath

22: Galvanized steel tape armoring

32: Galvanized steel wire armoring





Standards



International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST2 to IEC 60502, black





Technical data



Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D







Specifications





Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Inner Covering Thickness Steel Tape Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
3 × 4+ 1 × 2.5 1/2.25+1/1.38 0.7 1.0 2 × 0.2 1.5 16.0 443 4.61 3.5 34 45
3 × 6+ 1 × 4 1/2.76+1/2.25 0.7 1.0 2 × 0.2 1.5 17.0 531 3.08 3.5 43 57
3 × 10+ 1 × 6 7/1.38+1/2.8 0.7 1.0 2 × 0.2 2.0 20.0 741 1.83 3.5 60 77
3 × 16+ 1 × 10 7/1.78+7/1.38 0.7 1.0 2 × 0.2 2.0 23.0 1135 1.15 3.5 83 105
3 × 25+ 1 × 16 7/2.14+7/1.78 0.9 1.0 2 × 0.2 2.0 26.0 1556 0.727 3.5 105 125
3 × 35+ 1 × 16 7/2.52+7/1.78 0.9 1.0 2 × 0.2 2.0 28.0 1896 0.524 3.5 125 155
3 × 50+ 1 × 25 10/2.52+7/2.14 1.0 1.0 2 × 0.2 2.0 31.0 2518 0.387 3.5 160 185
3 × 70+ 1 × 35 14/2.52+7/2.52 1.1 1.2 2 × 0.2 2.5 36.0 3293 0.268 3.5 200 225
3 × 95+ 1 × 50 19/2.52+10/2.52 1.1 1.2 2 × 0.5 2.5 40.0 4349 0.193 3.5 245 270
3 × 120+ 1 × 70 24/2.52+14/2.52 1.2 1.2 2 × 0.5 2.5 44.0 5365 0.153 3.5 285 310
3 × 150+ 1 × 70 30/2.52+14/2.52 1.4 1.4 2 × 0.5 3.0 49.0 6468 0.124 3.5 325 345
3 × 185+ 1 × 95 37/2.52+19/2.52 1.6 1.4 2 × 0.5 3.0 52.0 7854 0.0991 3.5 375 390
3 × 240+ 1 × 120 48/2.52+24/2.52 1.7 1.6 2 × 0.5 3.5 68.0 9814 0.0754 3.5 440 450
3 × 300+ 1 × 150 61/2.52+30/2.52 1.8 1.7 2 × 0.5 3.5 71.0 12781 0.0601 3.5 505 515
3 × 400+ 1 × 240 61/2.97+48/2.52 2.0 1.7 2 × 0.5 3.5 76.0 16359 0.0470 3.5 570 575



3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable 0




Packing & Shipping



All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.





Our Services



♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
