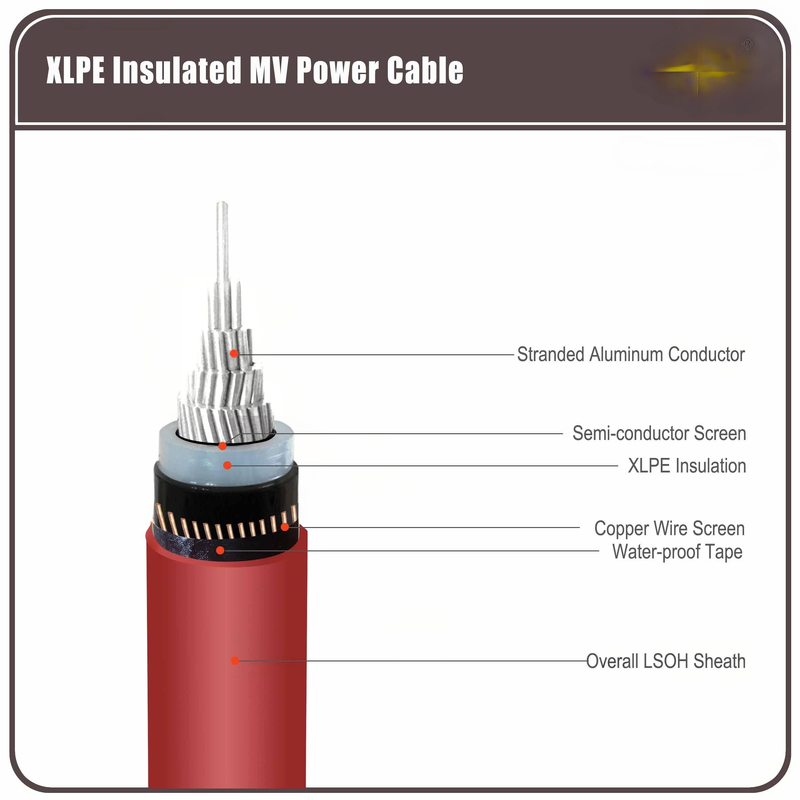

Medium Voltage Armoured Electrical Cable , Aluminium Wire Armoured Cable
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 OC
Inner covering : PVC
Armoring : Aluminum wire
Sheath : PVC type ST2 to IEC 60502, black
CODE Designation:
YJ: XLPE insulation
V: PVC sheath
72: Aluminum wire armoring
Applications:
Suitable for use in power distribution lines with rated voltage 3.6/6KV. For laying in shaft, water underground and large difference of level, able to bear external mechanical pressure and
moderate pulling force.
Standards:
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rated voltage: 0.6 / 1 kV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no
more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 15 x cable O.D
Certificates:
CE, RoHS, CCC, KEMA and more others at request
Brief technical Specification:
| Nom. Cross-section of conductor |
Strands No./Dia. Of Conductor |
Insulation Thickness |
Inner Sheath Thickness |
Dia. Of Armor Wire |
Sheath Thickness |
Approx. O.D. |
Approx. Weight |
| mm2 |
pc/mm |
mm |
mm |
mm |
mm |
(mm) |
kg/km |
| 1 × 25 |
7/2.14 |
2.5 |
1.2 |
1.6 |
1.8 |
24.0 |
1396 |
| 1 × 35 |
7/2.52 |
2.5 |
1.2 |
1.6 |
1.8 |
25.0 |
1550 |
| 1 × 50 |
10/2.52 |
2.5 |
1.2 |
1.6 |
1.8 |
26.0 |
1754 |
| 1 × 70 |
14/2.52 |
2.5 |
1.2 |
1.6 |
1.9 |
28.0 |
2054 |
| 1 × 95 |
19/2.52 |
2.5 |
1.2 |
1.6 |
1.9 |
29.0 |
2367 |
| 1 × 120 |
24/2.52 |
2.5 |
1.2 |
1.6 |
2.0 |
31.0 |
2701 |
| 1 × 150 |
30/2.52 |
2.5 |
1.2 |
2.0 |
2.0 |
33.0 |
3301 |
| 1 × 185 |
37/2.52 |
2.5 |
1.2 |
2.0 |
2.1 |
35.0 |
3756 |
| 1 × 240 |
48/2.52 |
2.6 |
1.2 |
2.0 |
2.2 |
38.0 |
4458 |
| 1 × 300 |
61/2.52 |
2.8 |
1.2 |
2.0 |
2.3 |
40.0 |
5223 |
| 1 × 400 |
61/2.97 |
3.0 |
1.3 |
2.5 |
2.4 |
45.0 |
6804 |
| 1 × 500 |
61/3.23 |
3.2 |
1.3 |
2.5 |
2.5 |
50.0 |
8094 |
